Telescope

• full name: Janusz Kałużny 1.5-m Telescope
• size of the mirror: 150 cm
• focal length: 9000 m
• aperture: 1500 mm
• mount: Alt-Azimuth
• no guider sets upper limit on long exposures of 200s

Camera

• Camera Andor iKon-XL 230 EA02-CS-EXT
• size: 4096 x 4096 pixels
• blue coating
• mechanical leaf shutter sets lower limit on short exposures of 5s
• CCD dynamics: 16 bit, 18 bit
• CCD size: 61.4 x 61.4 mm
• pixel scale: 0.344”/pixel
• Field of View (FoV): 23.5′ x 23.5′ (tilted at about 46°, download footprint-jk15.xml for Aladin)
• binning 1 x 1 (default)
• readout time: 34 s at 1MHz readout mode
• Read noise (e^–): TBD
• Gain (e^–/ADU): TBD
• Dark current (e^–/pix-s): TBD

Filters

• Strömgren: uvby (transmission curve plot, data)
• Hα wide, Hα narrow, Hβ wide, Hβ narrow (transmission curve plot, data)

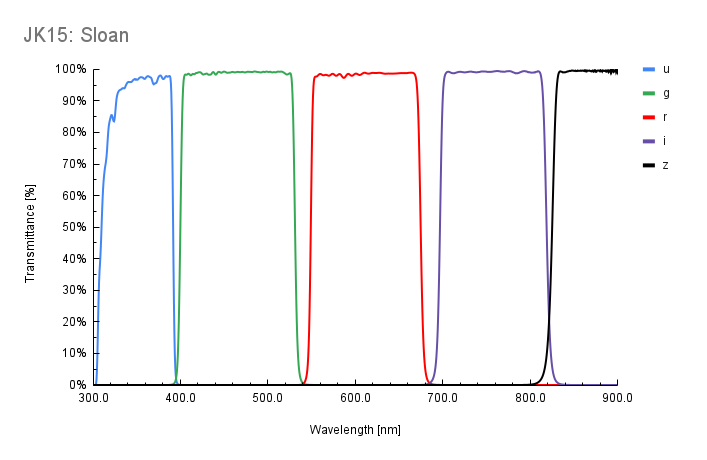

• Sloan: ugriz (transmission curve plot, data)

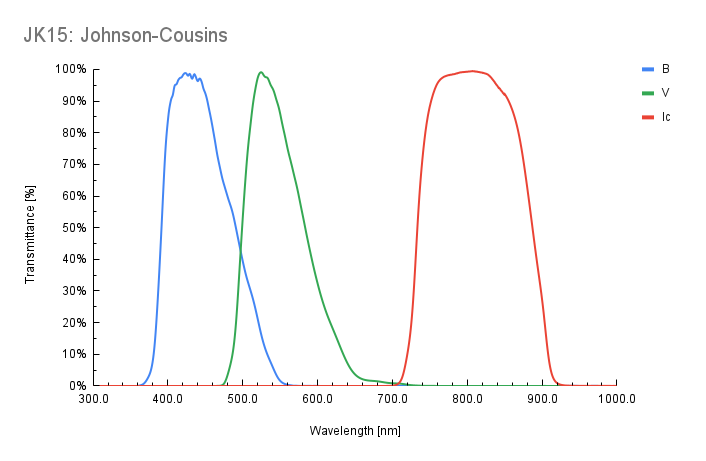

• Johnson-Cousins: BVI (transmission curve plot, data)

List of restricted targets

Advanced documentation (password-protected)
