Telescope

• full name: Wojtek Krzemiński 0.6-m Telescope
• size of the mirror: 60 cm
• focal length: 4200 mm
• focal ratio: 7.0
• aperture: 0.6 m
• mount: equatorial
• foci: 1 (occupied by a camera)

Camera

• Andor i-Kon L DW936N-BV (4-stage peltier cooling, back-illuminated)
• 2048 x 2048 px
• FoV: 22.5 x 22.5 arcmin (tilted at about 9°, download footprint-wk06.xml for Aladin)
• resolution: 0.66 arcsec/px
• pixel readout rates: 3, 1, 0.05 MHz, and 5 MHz (for focusing and visualization mode only!)
• binning: 1×1, 2×2, 4×4, 8×8, 16×16
• gain: #0 3.93 e-/ADU, #1 1.92 e-/ADU, #2 0.97 e-/ADU
• CCD area: 27.6 x 27.6 mm
• pixel size (W x H): 13.5 x 13.5 μm

Filters

Filter wheel 1:

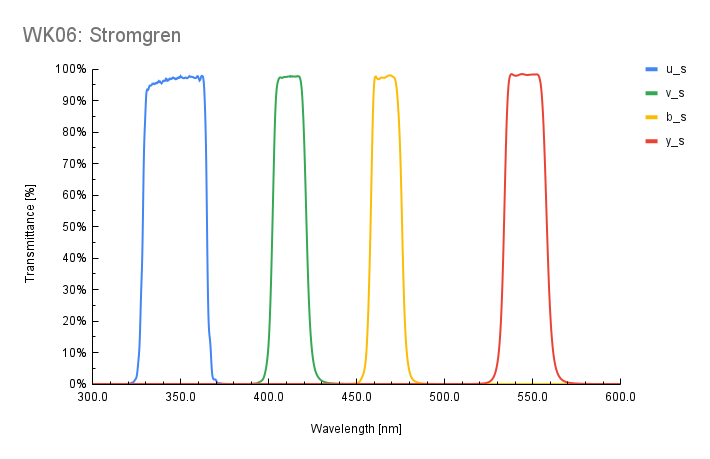

• Strömgren: uvby (transmission curve plot, data)

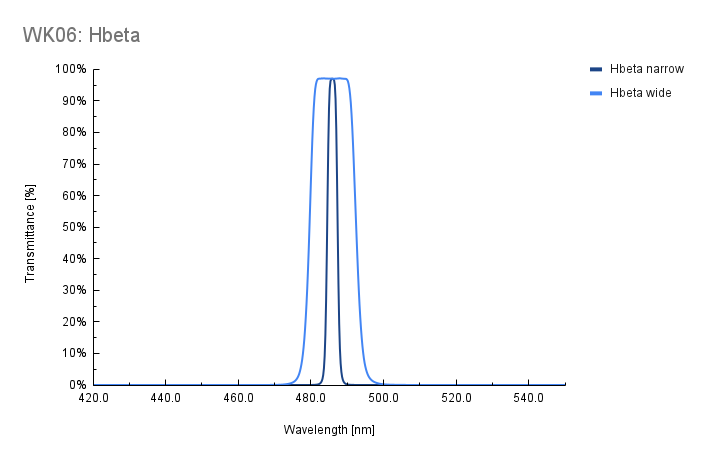

• Hβ wide, Hβ narrow (transmission curve plot, data)

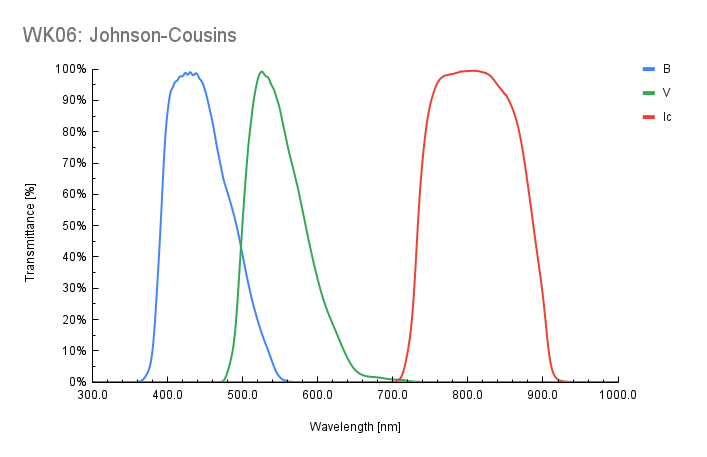

• Johnson-Cousins: BVI (transmission curve plot, data)

Filter wheel 2:

• diffuser (currently inactive)
