ZB08
Telescope
- full name: Zbigniew Zibi Kołaczkowski 0.8m Telescope
- size of the mirror: 80 cm
- focal length: 5480 mm
- mount: Alt-Azimuth
- foci: 4 (used 1)
Camera
- Andor i-Kon L DW936N-BV (4-stage peltier cooling, back-illuminated)
- 2048 x 2048 px
- FoV: 17.2 x 17.2 arcmin (tilted at about 11°, download footprint-zb08.xml for Aladin)
- resolution: 0.5 arcsec/px
- pixel readout rates: 3, 1, 0.05 MHz, and 5 MHz (for focusing and visualization mode only!)
- binning: 1×1, 2×2, 4×4, 8×8, 16×16
- gain: #0 3.93 e-/ADU, #1 1.92 e-/ADU, #2 0.97 e-/ADU
- CCD area: 27.6 x 27.6 mm
- pixel size (W x H): 13.5 x 13.5 μm
Filters

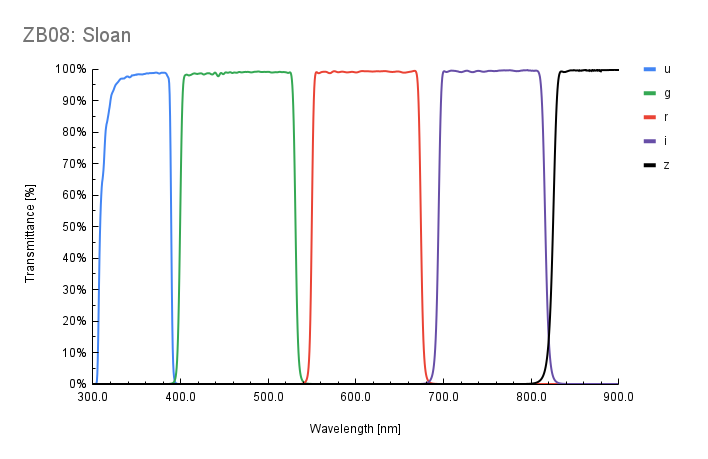

Filter wheel 1:

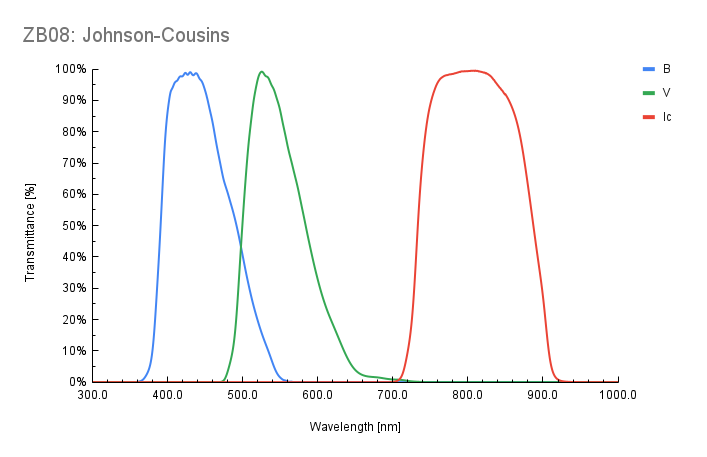

Filter wheel 2:
- diffuser (currently inactive)
